What are the typical applications for Cross Roller Bearings with an inner gear?

Cross Roller Bearings with an inner gear are commonly used in precision machinery, industrial automation, and heavy-duty equipment where high load capacities and precision are required. They are particularly suited for applications such as robotic arms, machine tool spindles, and automotive transmission systems where space is limited but high performance is critical.

How does the load rating of this bearing affect its performance?

The load rating of a bearing is a critical factor in determining its suitability for specific applications. A high load rating, such as the 45000 N dynamic and 48000 N static for our Cross Roller Bearing (Inner Gear), ensures that the bearing can handle heavy loads without compromising on precision or durability. This is particularly important in applications where the bearing is subjected to continuous or intermittent high loads, such as in heavy machinery or precision equipment.

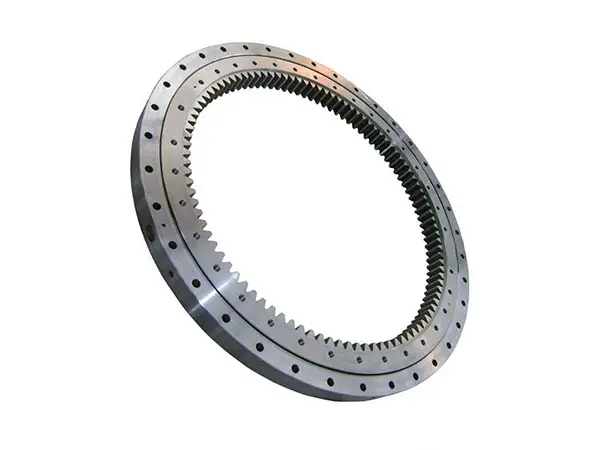

Cross Roller Bearing (Inner Gear)

High Precision Cross Roller Bearing for Industrial Gear Systems

The cross roller bearing (inner gear) is a precision-engineered component designed for applications requiring high radial and axial load capacities. With its compact design and robust construction, it is ideal for use in heavy-duty machinery, industrial automation, and precision equipment. This bearing stands out for its ability to maintain accuracy under load, ensuring smooth operation and extended service life in demanding environments.

Send E-mail Request A Quote

KXSI14 Series Cross Roller Slewing Bearing

Model	Outer Dia D	Bore d	Outer Ring Bore d1	Inner Ring OD D1	Module	Teeth Z	Gear Pitch Circle do	Sea	Kea	Sia	Kia	Outer Ring PCD1	Outer Mount Hole	Inner Ring PCD2	Inner Mount Hole	Axial Dynamic Ca	Axial Static Coa	Radial Dynamic Cr	Radial Static Cor	Preload Clearance
KXSI140414	484	325	415	411	5	67	335	0.04	0.06	0.04	0.06	460	24-M12 Deep20	375	24-M12 Deep20	229	520	146	250	0.01~0.03
KXSI140544	614	444	545	541	6	76	456	0.04	0.07	0.04	0.06	590	32-M12 Deep20	505	32-M12 Deep20	270	680	170	330	0.01~0.03
KXSI140644	714	546	645	641	6	93	558	0.05	0.08	0.05	0.07	690	36-M12 Deep20	605	36-M12 Deep20	290	800	185	395	0.01~0.04
KXSI140744	814	648	745	741	6	110	660	0.05	0.08	0.05	0.08	790	40-M12 Deep20	705	40-M12 Deep20	315	930	200	455	0.01~0.04
KXSI140844	914	736	845	841	8	94	752	0.05	0.09	0.05	0.08	890	40-M12 Deep20	805	40-M12 Deep20	340	1050	215	510	0.01~0.04
KXSI140944	1014	840	945	941	8	107	856	0.06	0.09	0.06	0.09	990	44-M12 Deep20	905	44-M12 Deep20	360	1170	227	580	0.01~0.05
KXSI1401094	1164	984	1095	1091	8	125	1000	0.07	0.11	0.07	0.11	1091	48-M12 Deep20	1055	48-M12 Deep20	390	1360	246	670	0.01~0.05

Why Choose Our Cross Roller Bearing for Heavy-Duty Applications?

The Cross Roller Bearing (Inner Gear) is specifically designed to handle high loads and maintain precision in heavy-duty machinery. With an inner diameter of 20mm, it is engineered to provide a balance between compactness and load-bearing capacity. This bearing is particularly suited for applications where space is at a premium but high performance is non-negotiable, such as in industrial gear systems and precision automation equipment.

Its robust construction and high load ratings make it a preferred choice in industries such as automotive, aerospace, and heavy machinery manufacturing. The bearing's ability to handle both radial and axial loads with minimal friction ensures efficient operation and reduces energy consumption, contributing to the overall efficiency of the machinery it is installed in.

When compared to other bearings in its class, the Cross Roller Bearing (Inner Gear) offers superior load ratings and a more compact design. This makes it an excellent choice for applications where space is limited, yet high performance and reliability are critical. Its precision engineering also ensures that it can operate at high speeds without compromising on accuracy, making it a popular choice in high-speed machinery.

High load ratings for both radial and axial loads
Compact design for space-constrained applications
Precision engineering for high-speed operation

Key Technical Features and Advantages

STEP 1

High Load Capacity

Designed to handle dynamic loads up to 45000 N and static loads up to 48000 N, ensuring reliable performance in heavy-duty applications.

STEP 2

Compact Design

With an inner diameter of 20mm, this bearing is engineered for applications where space is limited, providing a balance between size and load-bearing capacity.
