What are the key factors to consider when selecting a drive pinion gear for my application?

When selecting a drive pinion gear, consider the load requirements, operating environment, and compatibility with your machinery. Our gear is designed for heavy-duty applications, offering high load-bearing capacity and durability. Ensure that the pitch diameter and bore diameter match your equipment specifications to guarantee seamless integration and optimal performance.

How does the material of the drive pinion gear affect its performance?

The material of the drive pinion gear is crucial for its performance, especially in heavy-duty applications. High-strength steel, as used in our gear, offers superior resistance to wear and tear, ensuring that the gear maintains its integrity under high loads. This material also contributes to the gear's ability to operate efficiently in harsh conditions, reducing the need for frequent maintenance and replacement.

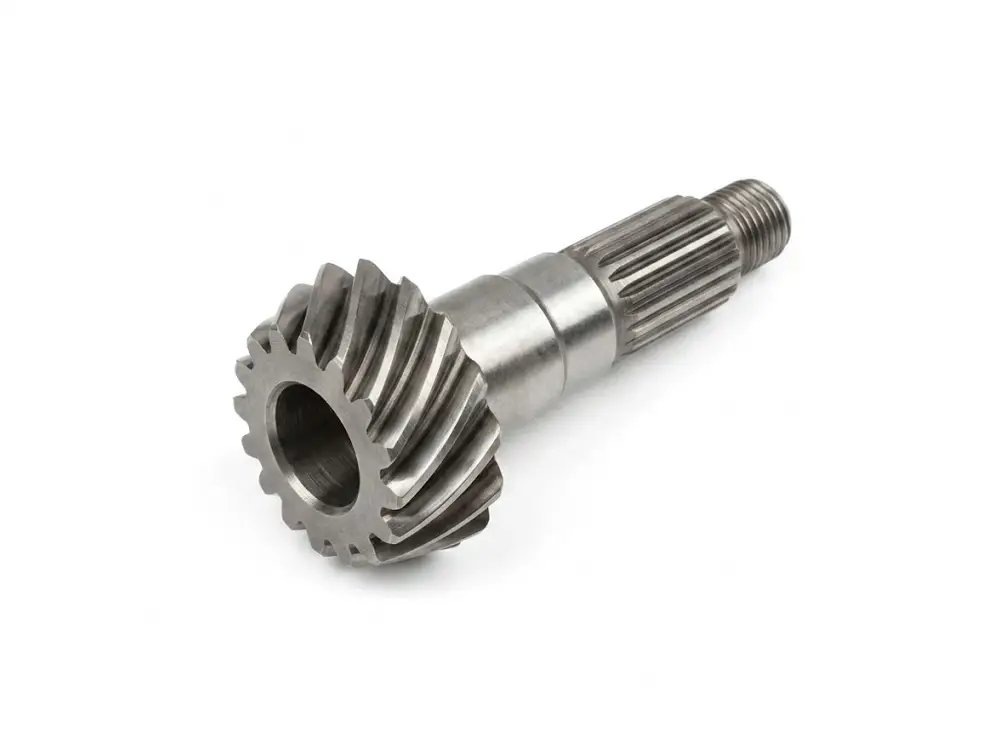

Drive Pinion Gear

Precision-engineered Drive Pinion Gear for Industrial Applications

Our Drive Pinion Gear is meticulously crafted for heavy-duty machinery that demands high precision and torque. Engineered with high-strength steel, it is designed to withstand the rigors of industrial environments. This gear is specifically tailored for applications where reliability and durability are paramount, such as in construction equipment, heavy machinery, and industrial automation systems.

Send E-mail Request A Quote

Product Parameters

Drive Pinion Gear Parameters
Module m	Teeth z	Pressure Angle α	Helix Angle β	Bore ØdH7	Hub Diameter ØD1	Pitch Diameter Ød0	Addendum Diameter ØDa	Overall Length H	Gear Face Width B
2	18	20°	0°	12	30	36	40	30	20
2	18	20°	0°	15	30	36	40	30	20
2	20	20°	0°	15	32	40	44	30	20
2	20	20°	0°	18	32	40	44	30	20
2	24	20°	0°	18	35	48	52	30	20
2	25	20°	0°	20	35	50	54	30	20
2	30	20°	0°	22	40	60	64	30	20
2	35	20°	0°	22	40	70	74	30	20
2	40	20°	0°	25	45	80	84	30	20
2.5	20	20°	0°	22	40	50	55	37	25
2.5	24	20°	0°	22	40	60	65	37	25
2.5	25	20°	0°	22	45	62.5	67.5	37	25
2.5	36	20°	0°	30	55	90	95	37	25
2.5	40	20°	0°	32	55	100	105	37	25
3	20	20°	0°	25	45	60	66	30	45
3	25	20°	0°	30	55	75	81	30	45
3	30	20°	0°	28	60	90	96	30	45
3	40	20°	0°	30	70	120	126	30	45
4	18	20°	0°	30	50	72	80	60	40
4	20	20°	0°	32	60	80	88	60	40
4	24	20°	0°	28	60	96	104	60	40
4	25	20°	0°	30	60	100	108	60	40
4	35	20°	0°	35	70	120	128	60	40
4	36	20°	0°	40	70	144	152	60	40
4	40	20°	0°	45	80	160	168	60	40
5	21	20°	0°	45	68	105	115	68	50
5	21	20°	0°	55	80	105	115	80	50
5	23	20°	0°	45	68	115	125	68	50
5	23	20°	0°	55	80	115	125	80	50
5	25	20°	0°	45	68	125	135	85	50
5	25	20°	0°	55	80	125	135	90	50
5	25	20°	0°	70	110	125	135	110	50
6	21	20°	0°	55	80	126	138	110	60
6	21	20°	0°	75	110	126	138	120	60
6	25	20°	0°	55	80	150	162	110	60
6	25	20°	0°	75	110	150	162	120	60

Why Choose Our Drive Pinion Gear for Heavy-Duty Applications?

Our Drive Pinion Gear is a critical component in various heavy-duty machinery, designed to handle significant torque loads with precision. Made from high-strength steel, it boasts a pitch diameter of 50mm and a bore diameter of 30mm, ensuring compatibility with a wide range of industrial equipment. The gear's 20 teeth and 2.5 module provide a balance between load capacity and speed, making it suitable for applications requiring both power and efficiency.

Our gear is widely used in industries such as construction, mining, and manufacturing, where equipment must operate under extreme conditions. It is specifically designed to minimize wear and tear, ensuring longer service life and reduced maintenance costs. The 20° pressure angle allows for smooth operation and reduces stress on the gear system, contributing to its robustness in high-load scenarios.

Compared to lighter or standard-duty gears, our Drive Pinion Gear stands out with its ability to handle substantial loads without compromising on performance. This makes it an ideal choice for industries where the machinery is expected to perform under the most demanding conditions.

High-strength steel construction for durability and load-bearing capacity.
Optimized tooth profile for efficient power transmission and reduced noise.
Precision manufacturing process ensuring consistent performance across all units.

Key Technical Features of Drive Pinion Gear

STEP 1

High-Strength Steel Material

Our Drive Pinion Gear is made from high-strength steel, which provides exceptional durability and resistance to wear. This material choice ensures that the gear can handle heavy loads and maintain its integrity over time, even in harsh industrial environments.

STEP 2

Optimized Tooth Profile

The tooth profile of our gear is designed to optimize power transmission efficiency and reduce noise during operation. This results in smoother operation and less wear on the gear system, leading to longer service life and improved performance.

STEP 3

Precision Manufacturing

Each Drive Pinion Gear undergoes a precision manufacturing process, ensuring that every unit meets the highest quality standards. This attention to detail results in consistent performance across all gears, providing reliable operation in critical machinery applications.

STEP 4

Robust Design for Heavy Loads

With a pitch diameter of 50mm and a bore diameter of 30mm, our gear is designed to handle substantial torque loads. The robust design allows it to operate efficiently in heavy-duty machinery, such as construction equipment and industrial automation systems.
