What makes the XSU series suitable for high-precision applications?

The XSU series crossed roller bearings are designed with a P4 precision rating, which ensures minimal tolerances and high accuracy. This precision is crucial for applications such as precision positioning systems and high-speed spindles where any deviation can lead to significant operational issues.

How do these bearings handle high temperatures?

The XSU series is made from chrome steel, which provides excellent resistance to high temperatures, allowing the bearings to operate effectively up to 200°C. This makes them suitable for applications in environments where heat is a significant factor, such as in certain industrial machinery and automotive applications.

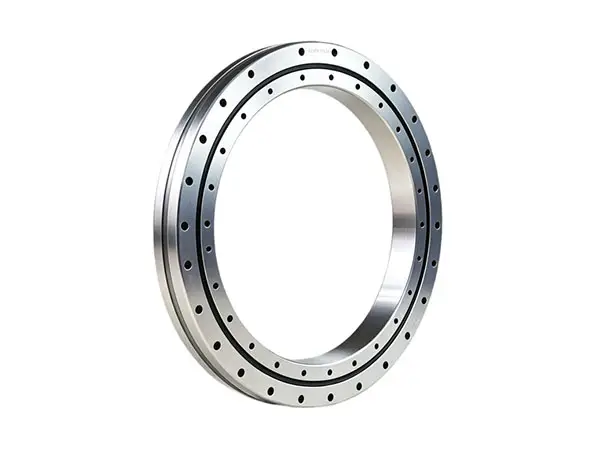

XSU Series Crossed Roller Bearings

Precision and Durability for Heavy-Duty Applications

The XSU series crossed roller bearings are engineered for high precision and reliability in demanding environments. These bearings are specifically designed to handle substantial radial, axial, and moment loads, making them ideal for heavy machinery, precision positioning systems, and high-speed applications. With a chrome steel construction and P4 precision rating, the XSU series offers superior performance and longevity.

Send E-mail Request A Quote

Product Parameters

Model	Inner d(mm)	Outer D(mm)	Width B(mm)	Mounting Hole Qty.	Min Radius r_min(mm)	Axial Dynamic Ca(kN)	Axial Static C0a(kN)	Radial Dynamic Cr(kN)	Radial Static Cor(kN)	Limit Speed(r/min)	Weight(kg)
XSU080168	130	205	25.4	12	1.1	66	240	42	96	227	3.3
XSU080188	150	225	25.4	16	1.1	71	275	46	110	203	3.7
XSU080218	180	225	25.4	20	1.1	77	315	49	127	175	4.3
XSU080258	220	295	25.4	24	1.5	84	375	54	151	148	5.1
XSU080318	280	355	25.4	28	1.5	93	465	59	185	120	6.3
XSU080398	360	435	25.4	36	2	106	590	68	236	96	7.8
XSU140414	344	484	56	24	2	229	520	146	250	-	28
XSU140544	474	614	56	32	2.5	270	680	170	330	-	38
XSU140644	574	714	56	36	2.5	290	800	185	395	-	44
XSU140744	674	814	56	40	3	315	930	200	455	-	52
XSU140844	744	914	56	40	3	340	1050	215	510	-	60
XSU140944	874	1014	56	44	3	360	1170	227	580	-	67

Why Choose XSU Series Crossed Roller Bearings for Your Machinery?

The XSU series crossed roller bearings are recognized for their exceptional load-bearing capabilities and precision. These bearings are crafted from chrome steel, providing a robust construction that can withstand high loads and maintain dimensional stability even under extreme conditions. With a P4 precision rating, the XSU series ensures minimal tolerances, which is crucial for applications requiring high accuracy and reliability.

These bearings are widely used in industries such as aerospace, robotics, and heavy machinery, where high precision and durability are paramount. Their ability to handle both radial and axial loads makes them versatile for a range of applications, from precision positioning systems to high-speed spindles.

Compared to other bearing types, the XSU series offers a unique combination of high load capacity and precision. This makes them superior for applications where other bearings might fail due to their inability to handle the combined loads or maintain precision over time.

High load capacity due to the use of chrome steel and optimized design.
P4 precision rating ensures minimal tolerances for high-accuracy applications.
Dimensional stability under high loads, ensuring long-term performance.

Technical Specifications and Benefits

STEP 1

High Load Capacity

The XSU series can handle substantial radial, axial, and moment loads due to their robust chrome steel construction and optimized design, making them suitable for heavy-duty machinery and high-precision applications.

STEP 2

P4 Precision Rating

With a P4 precision rating, these bearings ensure minimal tolerances, which is essential for applications requiring high accuracy and reliability, such as in precision positioning systems and high-speed spindles.

STEP 3

Chrome Steel Material

Made from chrome steel, the XSU series offers excellent durability and resistance to wear, ensuring long service life even under extreme conditions and high temperatures.

STEP 4

Dimensional Stability

The XSU series maintains excellent dimensional stability under high loads, which is crucial for maintaining the performance and precision of machinery over extended periods.
