What are the typical applications for SX series crossed roller bearings?

The SX series crossed roller bearings are commonly used in construction machinery, aerospace equipment, and precision instruments due to their high load capacity and precision. They are particularly suited for applications where both radial and axial loads need to be supported, such as in cranes, machine tools, and robotics.

How do I ensure the correct installation of SX series crossed roller bearings?

Proper installation of SX series crossed roller bearings is crucial for their performance and longevity. It is recommended to follow the manufacturer's guidelines, which include cleaning the mounting surfaces, using the correct tools to avoid damage, and ensuring that the bearing is seated correctly with the rollers in place. Over-tightening should be avoided as it can lead to deformation and reduced performance.

What maintenance is required for SX series crossed roller bearings?

Regular maintenance is essential to keep SX series crossed roller bearings in optimal condition. This includes periodic inspections for wear, ensuring proper lubrication, and checking for any signs of contamination. It is also important to monitor the operating temperature and noise levels, as these can indicate issues with the bearing's performance. In high-load applications, more frequent maintenance checks may be necessary.

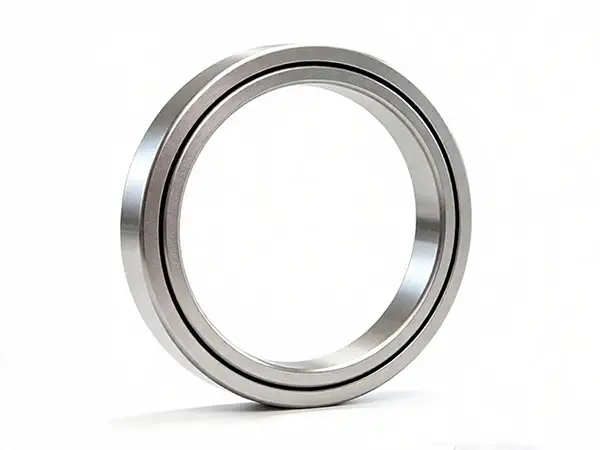

SX Series Crossed Roller Bearings

High-Performance SX Series Crossed Roller Bearings

The SX series crossed roller bearings are engineered for heavy-duty applications, offering exceptional load capacity and precision. These bearings are ideal for industries such as construction machinery, aerospace, and precision instruments where high precision and durability are paramount. With a diameter of 40mm and a load rating of 3000 N, the SX series stands out for its robustness and reliability.

Send E-mail Request A Quote

Product Parameters

Model	Inner d(mm)	Outer D(mm)	Width B(mm)	Min Radius r_min(mm)	Dynamic Load Cr(kN)	Static Load Cor(kN)	Weight(kg)
SX011814	70	90	10	0.6	11	20.4	0.3
SX011818	90	115	13	1	18.3	36.5	0.4
SX011820	100	125	13	1	19.4	40.5	0.5
SX011824	120	150	16	1	27	59	0.8
SX011828	140	175	18	1.1	45	96	1.1
SX011832	160	200	20	1.1	48	111	1.7
SX011836	180	225	22	1.1	69	153	2.3
SX011840	200	250	24	1.5	72	170	3.1
SX011848	240	300	28	2	105	255	5.3
SX011860	300	380	38	2.1	173	425	12
SX011868	340	420	38	2.1	185	485	13.5
SX011880	400	500	46	2.1	275	720	24
SX0118/500	500	620	56	3	395	1100	44

Why Choose SX Series Crossed Roller Bearings for Heavy-Duty Applications?

The SX series crossed roller bearings are designed for applications that demand high load capacity and precision. With a diameter of 40mm and a precision rating of P5, these bearings are suitable for heavy-duty machinery where reliability and durability are critical. The SX series is known for its ability to handle both radial and axial loads, making it a popular choice in industries such as construction and aerospace.

These bearings are made from chrome steel, which provides excellent strength and resistance to wear. The SX series is also capable of operating at high speeds, with a speed rating of 3000 rpm, ensuring smooth and efficient operation in high-performance applications. The temperature range of -30°C to 150°C allows the SX series to perform reliably in a variety of environments.

Compared to other bearing types, the SX series offers a distinct advantage in terms of load capacity and precision. Its crossed roller design allows for compact size while maintaining high load ratings, making it an ideal choice for applications where space is at a premium but performance is non-negotiable.

High load capacity with a rating of 3000 N
Precision rating of P5 ensures accurate alignment
Durable chrome steel construction for long-lasting performance

Key Technical Features of SX Series Crossed Roller Bearings

STEP 1

High Load Capacity

The SX series can handle a load rating of 3000 N, making it suitable for heavy-duty machinery and equipment that require high load-bearing capabilities.

STEP 2

Precision Rating P5

With a precision rating of P5, the SX series ensures accurate alignment and minimal play, which is crucial for precision machinery and instruments.

STEP 3

Chrome Steel Material

Constructed from chrome steel, the SX series offers superior strength and wear resistance, extending the service life of the bearings in demanding applications.

STEP 4

Wide Temperature Range

Capable of operating in temperatures from -30°C to 150°C, the SX series is suitable for use in a variety of environments, including extreme conditions.
